The metal push button switch is a power source that utilizes modern power electronics skills to manipulate the ratio of the time the switch is registered and turned off, and maintains a stable output voltage. The metal push button switch is usually composed of a pulse width modulation (PWM) control IC and a MOSFET. Metal button switches are necessary to have maintenance functions such as overcurrent, overheat, and short circuit in planning.
Diameter 22mm Metal Switches RD22

•  RN22-A1     •  RN22-A2
•  RN22-B1     •  RN22-B2
•  RN22-B3     •  RN22-C1
•  RN22-D1     •  RN22-D2
•  RN22-E       •  RN22-G1
•  RN22-G2     •  RN22-G3
•  RN22-F1     •  RN22-F2
•  RN22-F3

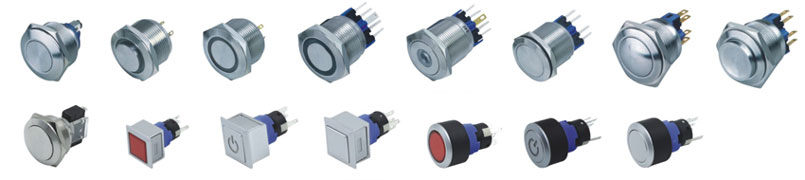

                          Diameter 22mm Metal Switches RD22 Figure



Part Number Mounting Hold Size Switch Rating Operation Types Head Shape Enclosure Material Degree of protection Lamp Type Head Color Download
RD22-A1 φ22mm 5A/250VAC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated / NULL
RD22-A2 φ22mm 5A/250VAC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Dot Illuminated / NULL
RD22-B1 φ22mm 5A/250VAC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 / / NULL
RD22-B2 φ22mm 5A/250VAC Resetable Self-locking Round Nickel plated brass/Stainless stell IP67,IK10 / / NULL
RD22-B3 φ22mm 5A/250VAC Resetable Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK10 / / NULL
RD22-C1 φ22mm 5A/250VAC Resetable Flat Nickel plated brass/Stainless stell IP67,IK10 / / NULL
RD22-D1 φ22mm 5A/250VAC Resetable Flat Nickel plated brass/Stainless stell IP65,IK10 Ring Illuminated / NULL
RD22-D2 φ22mm 5A/250VAC Resetable Flat Nickel plated brass/Stainless stell IP65,IK10 Ring Illuminated / NULL
RD22-E φ22mm 5A/250VAC Resetable Flush Nickel plated brass/Stainless stell IP65,IK10 Ring Illuminated / NULL
RD22-G1 φ22mm 5A/250VAC Resetable Self-locking Flat PA66 IP40,IP65 / R/O/Y/G/B/W NULL
RD22-G2 φ22mm 5A/250VAC Resetable Self-locking Flat PA66 IP40,IK65 Character Illuminated / NULL
RD22-G3 φ22mm 5A/250VAC Resetable Self-locking Flat PA66 IP40,IP65 / / NULL
RD22-F1 φ22mm 5A/250VAC Resetable Self-locking Flat PA66 IP40,IP65 / R/O/Y/G/B/W NULL
RD22-F2 φ22mm 5A/250VAC Resetable Self-locking Flat PA66 IP40,IK65 Character Illuminated / NULL
RD22-F3 φ22mm 5A/250VAC Resetable Self-locking Flat PA66 IP40,IP65 / / NULL
