Home ? Product Center ? Other ? Switch ? Metal Switch ? RD12 ?

The metal push button switch is a power source that utilizes modern power electronics skills to manipulate the ratio of the time the switch is registered and turned off, and maintains a stable output voltage. The metal push button switch is usually composed of a pulse width modulation (PWM) control IC and a MOSFET. Metal button switches are necessary to have maintenance functions such as overcurrent, overheat, and short circuit in planning.
Diameter 12mm Metal Switches RD12

•  RD12-A1     •  RD12-A3
•  RD12-A6     •  RD12-A7
•  RD12-A8     •  RD12-A5
•  RD12-B1     •  RD12-B2
•  RD12-C1     •  RD12-C2
•  RD12-D1     •  RD12-D2
•  RD12-D4     •  RD12-D5
•  RD12-D6

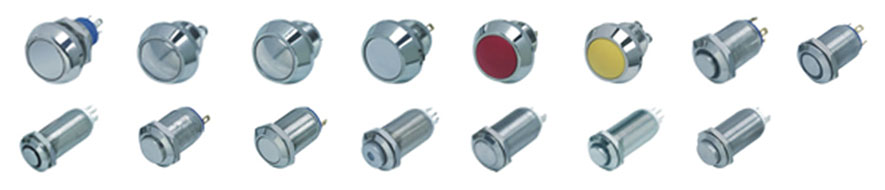

               Diameter 12mm Metal Switches RD12 Figure



Part Number Mounting Hold Size Switch Rating Operation Types Head Shape Enclosure Material Degree of protection Lamp Type Head Color Head Type Download
RD12-A1 φ12mm 2A/36VDC Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 / / / NULL
RD12-A3 φ12mm 2A/36VDC Resetable Round Nickel plated brass/Stainless stell IP65,IK08 / / / NULL
RD12-A6 φ12mm 2A/36VDC Resetable Round Nickel plated brass/Stainless stell IP65,IK08 / / / NULL
RD12-A7 φ12mm 2A/36VDC Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 / / / NULL
RD12-A8 φ12mm 2A/36VDC Resetable Round Nickel plated brass/Stainless stell IP65,IK08 / R/O/Y/G/B/W / NULL
RD12-A5 φ12mm 2A/36VDC Resetable Round Nickel plated brass/Stainless stell IP65,IK08 / R/O/Y/G/B/W / NULL
RD12-B1 φ12mm 2A/36VDC Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 / / / NULL
RD12-B2 φ12mm 2A/36VDC Resetable High Flat Nickel plated brass/Stainless stell IP65,IK08 / / / NULL
RD12-C1 φ12mm 2A/36VDC Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 Ring Illuminated / / NULL
RD12-C2 φ12mm 2A/36VDC Resetable High Flat Nickel plated brass/Stainless stell IP65,IK08 Ring Illuminated / / NULL
RD12-D1 φ12mm 2A/36VDC Self-locking Flat Nickel plated brass/Stainless stell IP65,IK08 / / / NULL
RD12-D2 φ12mm 2A/36VDC Self-locking High Flat Nickel plated brass/Stainless stell IP65,IK08 / / / NULL
RD12-D4 φ12mm 2A/36VDC Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK08 Dot Illuminated / / NULL
RD12-D5 φ12mm 2A/36VDC Resetable Flat Nickel plated brass/Stainless stell IP67,IK08 / / Ring Illuminated NULL
RD12-D6 φ12mm 2A/36VDC Resetable High Flat Nickel plated brass/Stainless stell IP67,IK08 / / Ring Illuminated NULL
