The push button switch, also known as the control button, is a low-voltage electrical appliance that is manually and generally automatically reset. The button is usually used to issue a start or stop command in the circuit to control the on and off of the electrical coil current of the electromagnetic starter, contactor, relay, and the like.
The push button switch is a kind of electric device that is used to switch on and off the small current circuit when the action is released. Generally used in control circuits with AC and DC voltages below 440V and currents less than 5A.
Illuminated Push Button Switches RPS

•  Rating：30VDC 0.1A
•  Contact Resistance：50mΩ Max
•  Insulation Resistance：100MΩ Min(250VDC)
•  Dielectric Strength：250VAC（50/60Hz for 1 min）
•  Operating Force：160±80g
•  Electrically Life：100,000 cycles
•  Operating Temperation Range：-20℃~+70℃
•  Operating Mode：A：Self-Lock B：Non-Lock

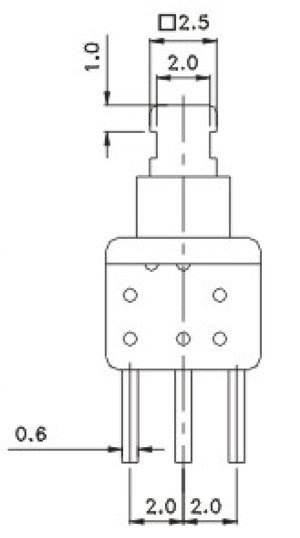

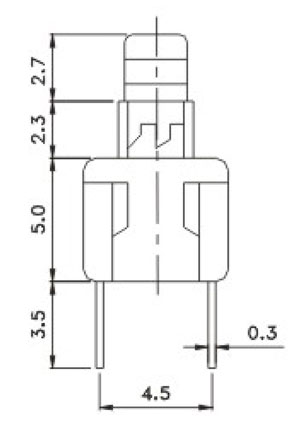

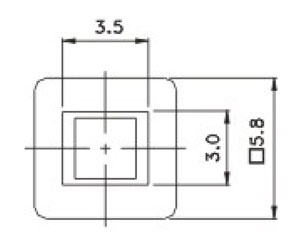

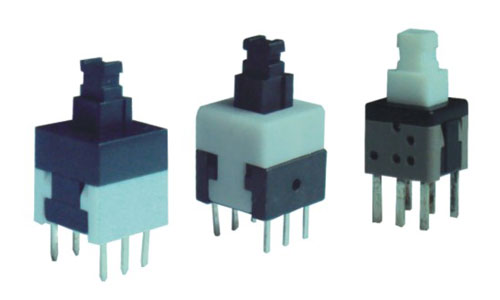

      Illuminated Push Button Switches RPS Figure      Illuminated Push Button Switches RPS Structure Diagram            Switch RPS Structure Diagram             RPS Structure Diagram



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electrically Life Operating Temp. Operating Mode Download
RPS58A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS58B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS581A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS581B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS582A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS582B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS60A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS60B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS70A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS70B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS70A-1(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS70B-1 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS80A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS80B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS851A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS851B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS852A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS852B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS8513A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
RPS8513B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock NULL
