The push button switch, also known as the control button, is a low-voltage electrical appliance that is manually and generally automatically reset. The button is usually used to issue a start or stop command in the circuit to control the on and off of the electrical coil current of the electromagnetic starter, contactor, relay, and the like.
The push button switch is a kind of electric device that is used to switch on and off the small current circuit when the action is released. Generally used in control circuits with AC and DC voltages below 440V and currents less than 5A.
Push_Button Switches R0198

•  Pole-Position：1P2T,2P2T,4P2T,Momentary
                            and Lock Type are available
•  Contact Rating：30VDC,0.3A;30VDC,1A
•  Contact Resistance：50mΩ Max.1.5VDC;100mA,
                                      By Method of Voltage DROP
•  Insulation Resistance：100MΩ Min,500VDC
•  Dielectric Strength：Breakdown is not Allowable;
                                    500VAC for 1 minute
•  Operation Force：1P2P-200±150gf;
                                 2P2T-300±150gf;
                                 4P2T-300±150gf
•  Operation Life：10,000 cycles
•  Operation Temperation：-20℃ ~70℃
•  Total Travel：2.5±0.3mm

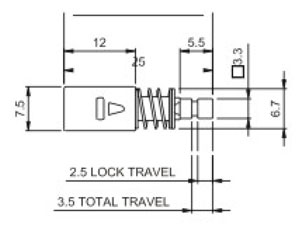

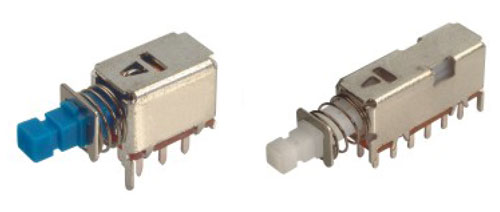

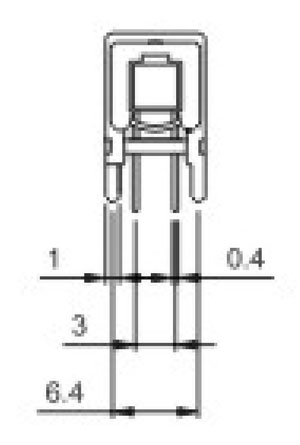

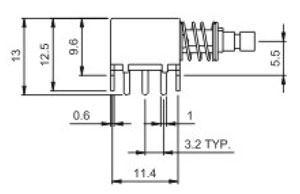

 Push_Button Switches R0198 Figure  Push_Button Switches R0198 Structure Diagram     Switch R0198 Structure Diagram    R0198 Structure Diagram



Part Number Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Operation Force Operation Life Operation Temp. Total Travel Download
R0198-B2PN 30VDC,0.3A;30VDC,1A 50mΩ Max.1.5VDC;100mA,By Method of Voltage DROP 100MΩ Min,500VDC Breakdown is not Allowable;500VAC for 1 minute 1P2P-200±150gf; 2P2T-300±150gf; 4P2T-300±150gf 10,000 cycles -20℃ ~70℃ 2.5±0.3mm NULL
R0198-B4PN 30VDC,0.3A;30VDC,1A 50mΩ Max.1.5VDC;100mA,By Method of Voltage DROP 100MΩ Min,500VDC Breakdown is not Allowable;500VAC for 1 minute 1P2P-200±150gf; 2P2T-300±150gf; 4P2T-300±150gf 10,000 cycles -20℃ ~70℃ 2.5±0.3mm NULL
