主頁 ? 產品中心 ? 其它產品 ? 微動開關Switch ? LED發光開關 ? R2909 ?

LED按鈕開關為按鈕開關+LED的復合式按鈕開關，開關功能件內部帶有LED指示燈，既能準確指示開關通斷狀態，同時又非常方便用戶在黑暗中尋找開關位置。它的開和關的操作都在同一位置，手按松開后翹板自動恢復平整狀態，手感更好，而且壽命更長。
帶燈按鈕開關R2909

•  Rating：0.1A 30VDC
•  Contact Resistance：50mΩ Max.(Initial)
•  Insulation Resistance：100MΩ Min (at 500 VDC)
•  Dielectric Strength：AC 500V (50/60 Hz for 1 minute)
•  Operating Force：150±100gf（Momentary)
                                 250±100gf(Alternate)
                                 200±100gf(Momentary With Click)
•  Electrical Life：10.000 Cycles Min
•  Ambient Temperature：-10℃ ~+ 80℃

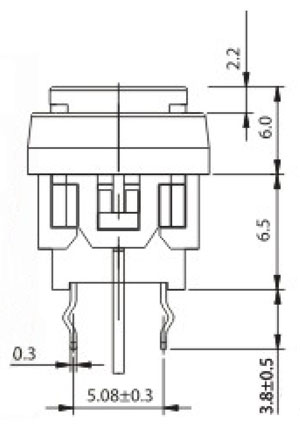

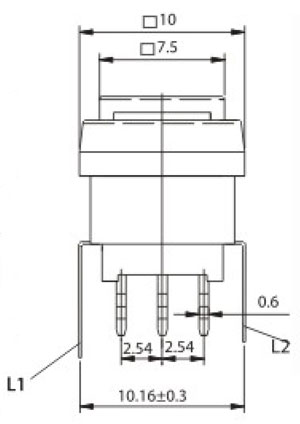

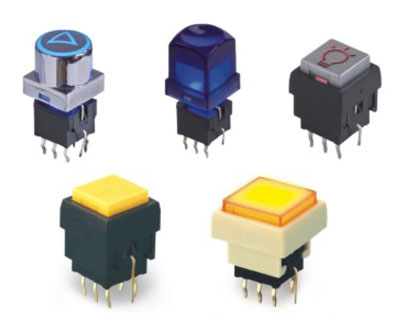

   帶燈按鈕開關R2909實拍圖   帶燈按鈕開關R2909結構圖        開關R2909結構圖          R2909結構圖



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electrical Life Ambient Temperature PDF下載
R29091F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R29093F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R290901□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R29094F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R29095F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R29096F□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R290907□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R290902□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R290903□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R290904□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
R290905□L 0.1A 30VDC 50mΩ Max.(Initial) 100MΩ Min (at 500 VDC) AC 500V (50/60 Hz for 1 minute) 150±100gf（Momentary) 250±100gf(Alternate) 200±100gf(Momentary With Click) 10.000 Cycles Min -10℃ ~+ 80℃ 暫無
